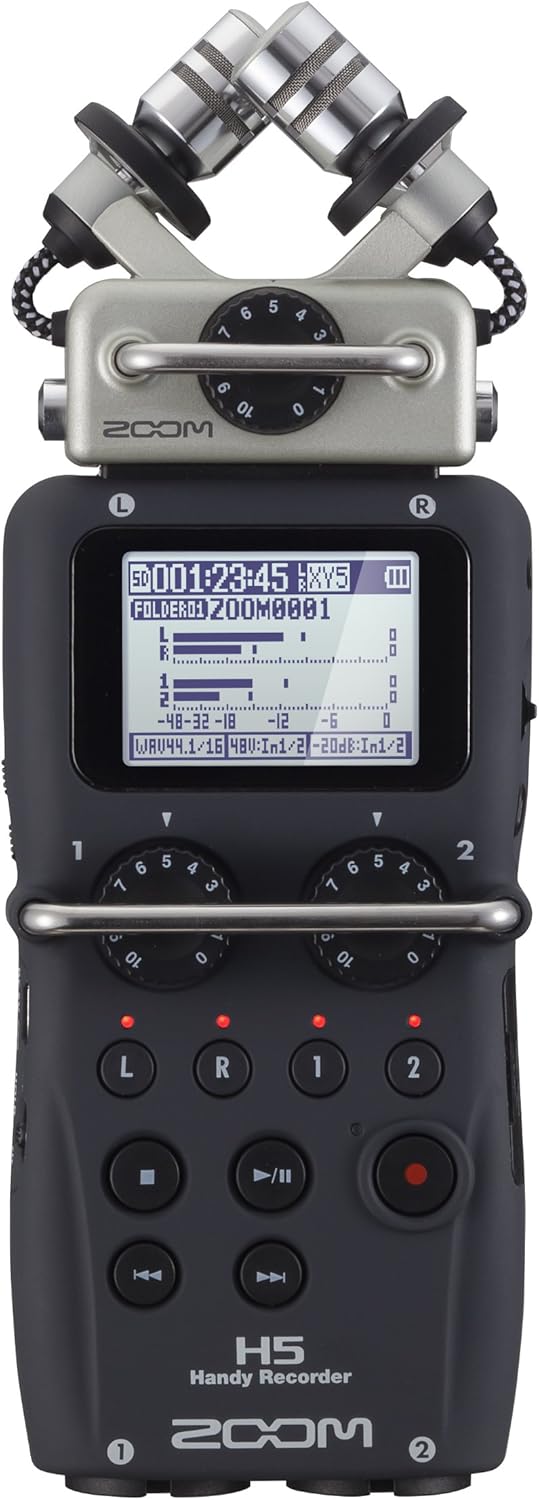

Zoom H5 4-channel Handy Recorder
The Zoom H5 4-channel Handy Recorder provides you with four tracks of portable recording power, letting you create professional 24-bit/96kHz recordings anywhere your creativity takes you. It comes standard with an XYH-5 XY microphone capsule, which you can swap out for other microphones and input modules to fit any recording situation. Two combo inputs, complete with onboard microphone preamps and switchable -20dB pads, let you connect the Zoom H5 with anything from phantom-powered condenser microphones to extremely hot line-level sources. Top it off with onboard processing, stellar recording options, and the fact that it doubles as a USB audio interface, and you can imagine how useful the Zoom H5 Handy Recorder can be.
Totally Flexible I/O
Swap out capsules to get the mics and I/O you need
For such a small, lightweight, and inexpensive portable device, the Zoom H5 Handy Recorder delivers a full set of professional-level I/O. First up, there’s the H5’s modular expansion port, which lets you connect the same amazing modular capsules Zoom introduced with the H6. You can read all about them in our Zoom Capsule Buying Guide. What’s more, the Zoom H5 comes with an XYH-5 capsule, which is an awesome shockmounted XY microphone that’s great for stereo recording. This capsule also includes an 1/8″ stereo input, but the H5 itself comes equipped with a pair of impressive combo jack inputs, each with its own volume dial and switchable -20dB pad. These inputs let you connect anything from phantom-powered condenser microphones to extremely hot line-level sources. And when it comes to monitoring, the Zoom H5 offers you both a line and a headphone output plus a built-in speaker.
Zoom H5 I/O at a Glance:
- Two onboard combo jacks provide mic- and line-level input via XLR or 1/4″ TRS/TS
- Independent volume controls and switchable -20dB pads provide easy level control
- Extra inputs available via swappable capsules (See Zoom Capsule Buying Guide)
- Headphone and line-level outputs provide stereo sound for monitoring and playback
- Review your recordings without external gear via the onboard monophonic speaker
Always Ready to Record
With Pre-record, Backup-record, and Auto-record functions
There’s something inherently unpredictable about field recording, which makes it unnervingly easy to miss critical takes. Zoom equipped their H5 Handy Recorder with three powerful recording modes to spare you the stress of a lost or ruined recording opportunity: Pre-record, Backup-record, and Auto-record. With Pre-record, the Zoom H5 is continuously buffering the last two seconds of audio, which it includes with every recording. So, even if you hit record late, you’re still likely to capture the sound you thought you missed. Along a similar line of thinking is Zoom H5’s Backup-record function, which records a separate stereo mix at 12dB down from your current settings (44.1/48kHz only). That way, if a sudden audio spike causes your input to clip, you still have a clean backup to work with. Finally, there’s Auto-record, which starts recording when the volume passes a certain threshold.
Zoom H5 Recording Options at a Glance:
- Pre-record function keeps you from missing once-in-a-lifetime recordings
- Continuous 2-second buffer lets you capture precious moments before you hit record
- Backup-record prevents unexpected audio spikes from ruining your takes
- Simultaneously records a second -12dB stereo track to provide a backup
- Auto-record function starts recording when the input crosses a volume threshold
Built-in Processing and More
Take advantage of a complete toolbox of onboard options
We’ve come to expect a lot from Zoom products, and the H5 Handy Recorder more than delivers. For starters, the Zoom H5 includes both onboard compression and limiting, which lets you smooth out your sound and prevent volume spikes from clipping your input levels. Likewise, there’s a switchable highpass (low-cut) filter, which lets you cut out low-end rumble, reduce wind and handling noise, and decrease the impact of pops and plosives. There are also valuable tools onboard that really come in handy if you’re a musician. For instance, the Zoom H5 includes both a metronome and a multimode tuner, along with advanced playback functions that let you change pitch, vary speed, and loop sections to make mastering difficult passages much easier.
Zoom H5 Advanced Functions at a Glance:
- Onboard compression lets you smooth out levels for more polished recordings
- Built-in limiter helps to prevent sudden level spikes from overloading your input
- Highpass (low-cut) filter lets you tame wind and handling noise at the source
- Includes a metronome and a chromatic tuner with handy guitar and bass settings
- Independent pitch and playback speed plus looping are invaluable practice tools
Marathon Recording Machine
Impressive battery life plus plenty of onboard storage
When you’re recording in the field, the last thing you want to deal with is running out of storage or battery power. You’ve got to hand it to Zoom — they certainly took that into account when they designed the H5 Handy Recorder. On the storage side, compatibility with up to 32GB SDHC card media means that even if you’re recording at maximum resolution (four tracks of 24-bit/48kHz or two tracks of 24-bit/96kHz), you can pack over 16 hours of audio onto a single card. And if you’re concerned about conserving disk space, then you can always record in stereo MP3 at up to 320kbps. And speaking of marathon recording sessions, you’ll be happy to know that just a pair of AA batteries will power your Zoom H5 for about 15 hours. We’re talking about everyday AAs here too, so keeping spare juice on hand is no big deal, if you think you’ll need it.
Zoom H5 Recording Capacity at a Glance:
- Records for up to 15 hours on just two alkaline or rechargeable NiMH AA batteries
- USB bus power provides alternative power options with or without a computer
- Captures audio directly to SD/SDHC card media up to 32GB for extended sessions
- Track professional Broadcast Wave Format (BWF) audio at up to 24-bit/96kHz
- Record high-quality MP3s at up to 320kbps for extremely long recording applications
Versatile USB Audio Interface
From field recorder to USB audio interface in a single cable
Not only is the Zoom H5 Handy Recorder an amazing field recorder, but it’s also a super-portable 4-in/2-out USB audio interface too. How cool is that?! We’ll tell you. For starters, because it’s class compliant, you can plug your H5 into just about any Mac or Windows PC, or even your iPad (via the Apple Camera Connection Kit), and get up to four inputs and two outputs right to your favorite DAW software or recording app. What’s more, all of the H5’s onboard processing is available even when you use it as an interface, so you can track with compression, limiting, and filtering. There’s zero-latency input monitoring to make recording easier, plus a cool Loop Back mode that lets you mix and record a stereo feed over USB along with the H5’s inputs.
Zoom H5 USB Interface at a Glance:
- Offers full 4-in/2-out USB recording to your Mac, Windows PC, or iPad
- Onboard compression, limiting, and filtering available when connected
- Direct monitoring provides zero-latency recording capabilities
- Loop Back mode lets you record USB and external inputs together
Zoom H5 Handy Recorder Features:
- A versatile 4-in/2-out mobile recording system
- 2 XLR/TRS combination inputs with microphone preamps and phantom power (+12/+24/+48V) accommodate most analog connections
- Modular input connection lets you attach onboard microphones and additional input jacks
- Gain knobs for each input make setting levels fast and easy
- Shockmounted XYH-5 XY stereo microphone module included
- Captures audio at up to 24-bit/96kHz professional-grade resolution
- Doubles as a handy USB recording interface with your Mac, Windows PC, or iPad (via Apple Camera Connection Kit)
- Large LCD display makes navigation and setup extremely easy
- Built-in processing includes highpass filtering, compression, limiting, and M-S stereo width decoding
- Loop playback, variable playback speed (from 50% to 150%), and variable pitch per track make this an excellent practice tool
- Chromatic tuner and metronome built in for added convenience
- Records onto SD and SDHC storage media with up to 32GB capacity
- Record for up to 15 hours on just 2 AA batteries
- Includes operation manual, USB cable, foam windscreen, and carrying case
- Optional shotgun mic, input expansion module, and hot shoe mount accessory also available
