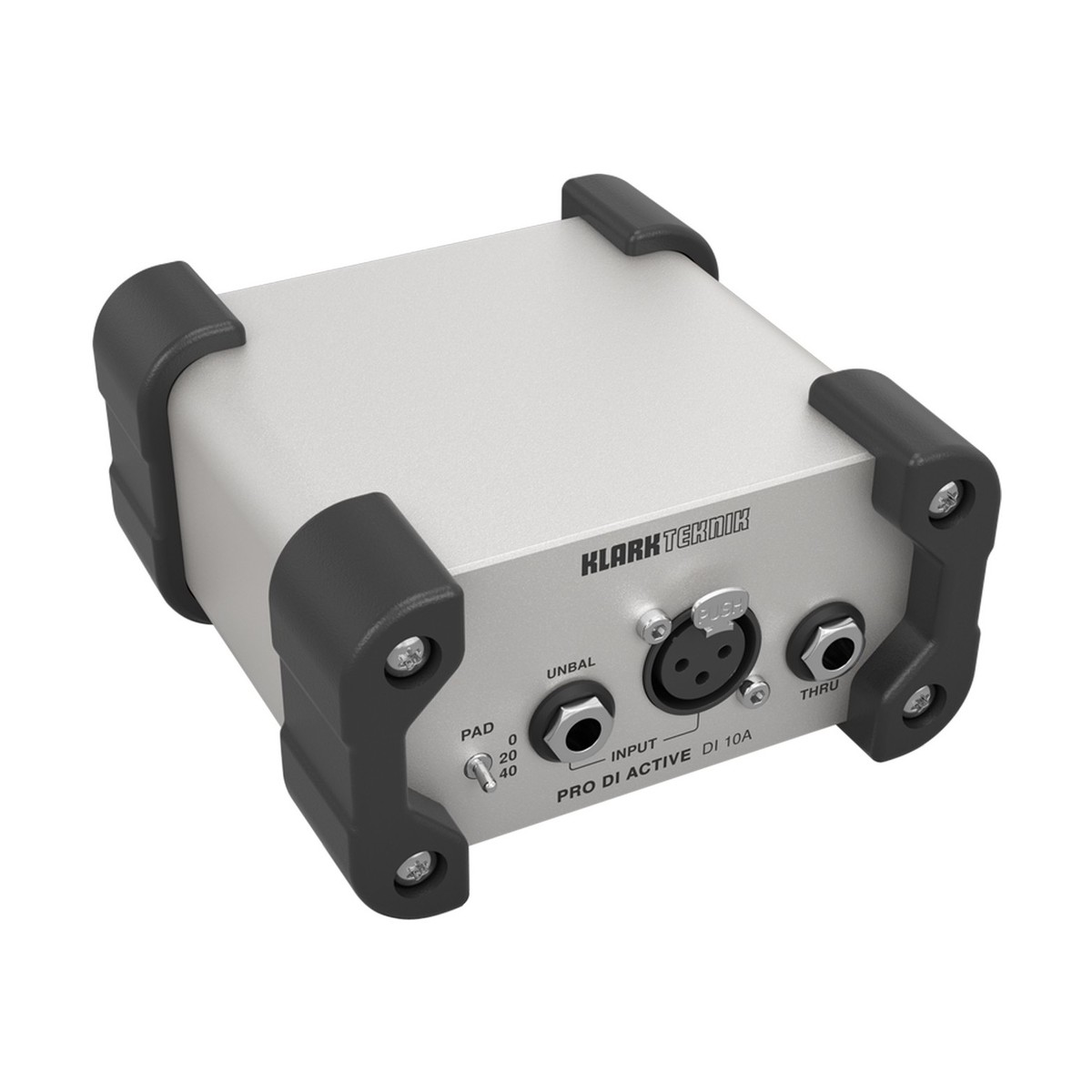

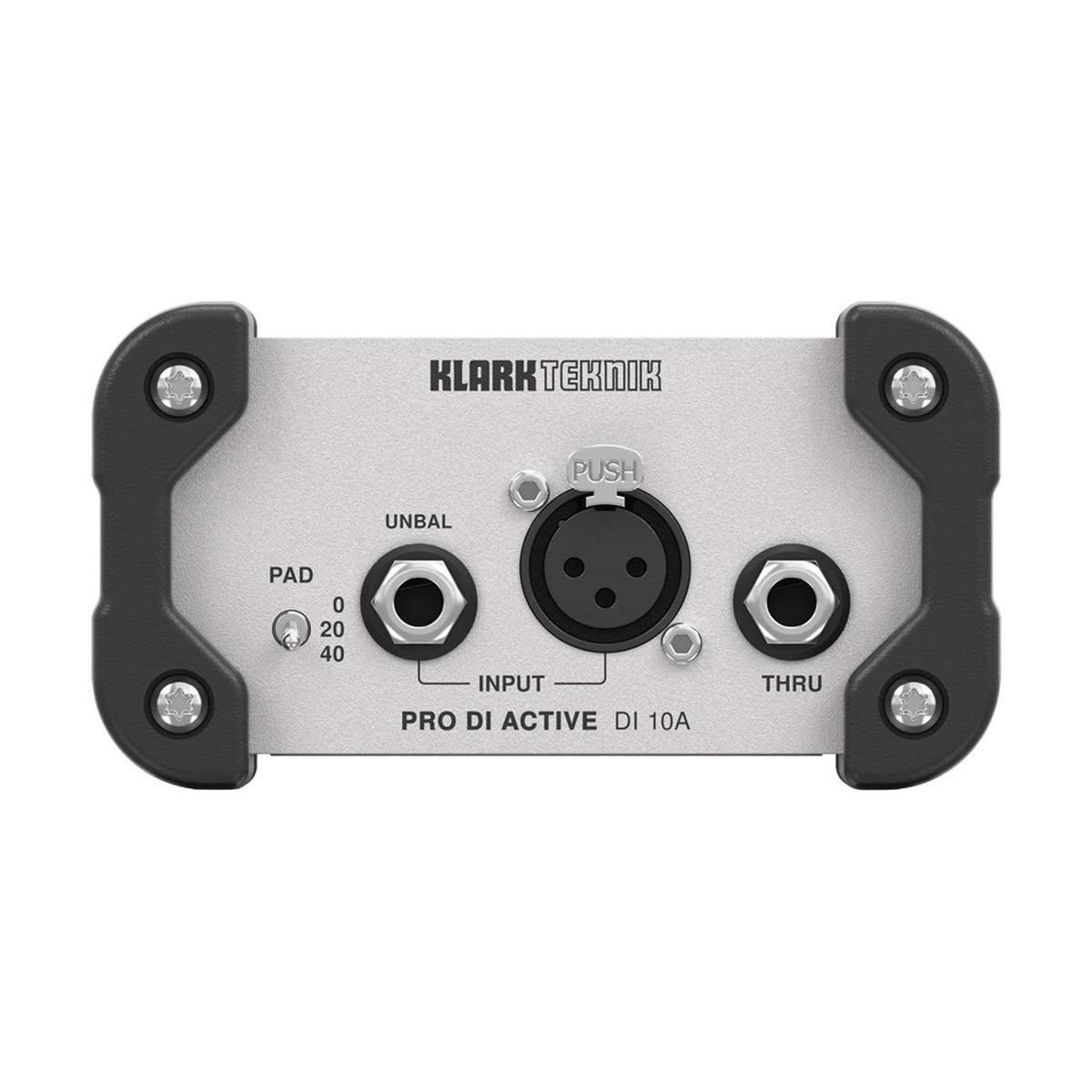

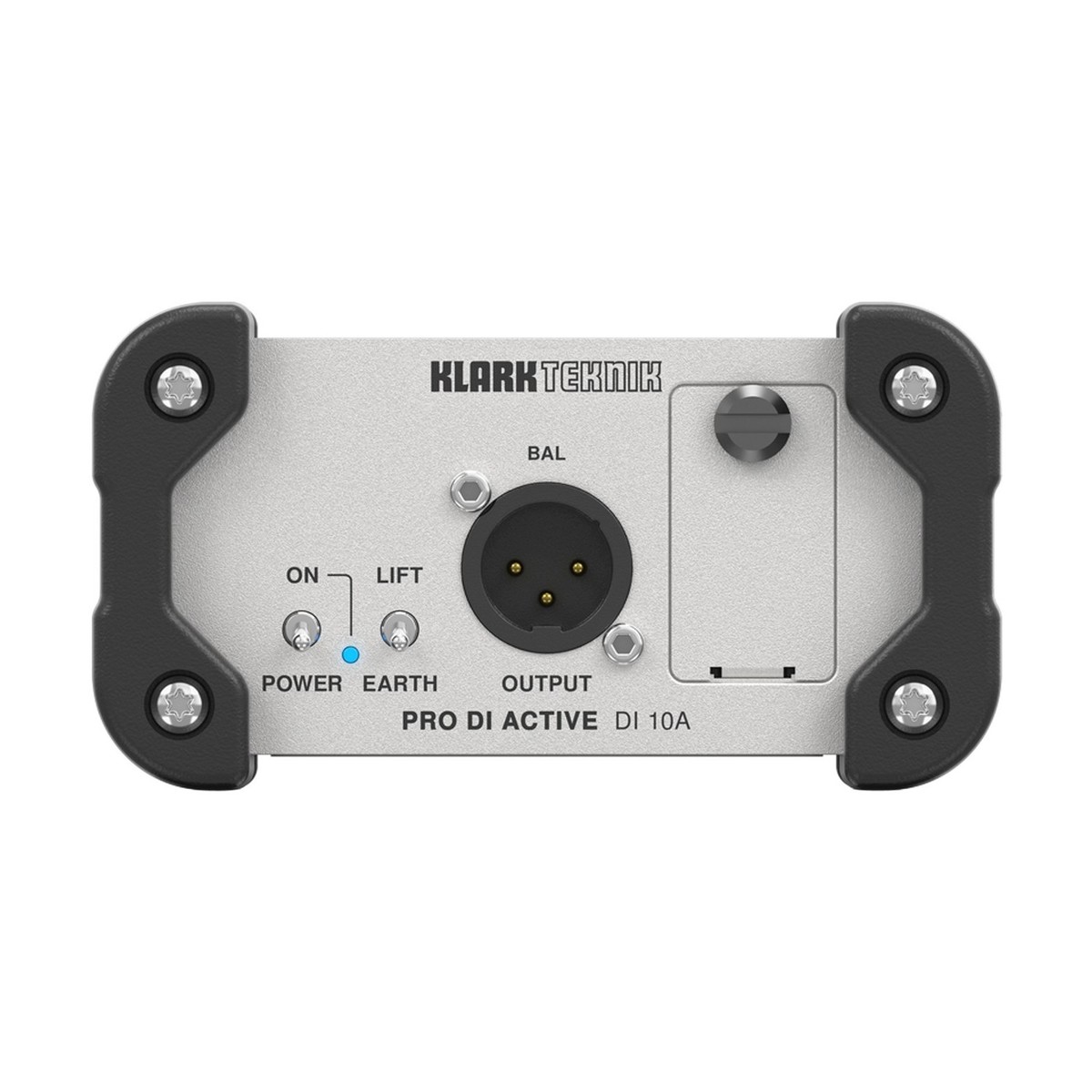

The Klark Teknik DI 10A Active DI Box allows you to connect media players, keyboards and a variety of other stereo sources to front of house mixing consoles. The custom-built MIDAS transformer ensures the highest possible signal integrity and the high headroom design provides superior audio quality. The DI 10A DI Box is powered via either +48V phantom power or an optional internal 9V backup battery.The front panel offers switchable attenuation for guitar, line and speaker levels, while the rear provides an Earth Lift switch to eliminate ground loop problems. Featuring 1/4” TS and XLR input connectors, along with a balanced XLR output connector, the Klark Teknik DI 10A is perfect for professional audio and multimedia applications.
Audio connections
- Input: 1 x XLR, balanced 1 x 1/4&rdquote; TS, unbalanced
- Input Impedance: >250kΩ
- Thru: 1 x 1/4&rdquote; TS, unbalanced
- Output: XLR, balanced
- Load Impedance: >600Ω
System
- Frequency response: 10 Hz to 90 kHz(±3dB)
- THD + N (Distortion): <0.02 % 1kHz, 0 dBu
- Noise Level: <-112dBu
- Pad switch: 0 / -20 / -40 dB
Power Supply
- Phantom power: 18 V DC to 48 V DC
- Battery: 9 V Blockcell 6LR61
Physical
- Dimensions: 64 x 118 x 120 mm
- Weight: 0.56kg
