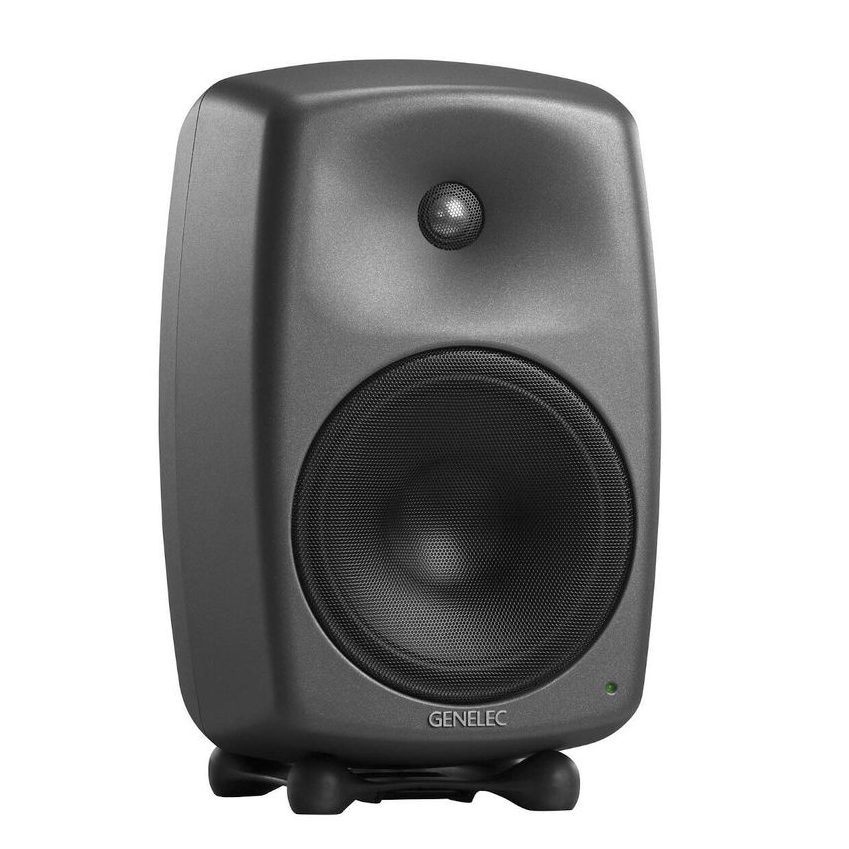

Genelec 8350A 8 inch Powered Studio Monitor (Individual)

Name: Genelec 8350A 8 inch Powered Studio Monitor (Individual)
Brand: Genelec
SKU: GEN8350A
Price: 52535.00 ZAR
Availability: BackOrder

SKU: GEN8350A

R52,535.00

Powered Bi-amplified Studio Monitor with 200W 8″ Woofer and 150W 1″ Metal Dome Tweeter (each)

In Stock at Warehouse

SKU: GEN8350A Categories: Midfield Monitors, Nearfield Monitors, Studio, Studio Monitors Tags: (Individual), 8, 8350A, Genelec, inch, Monitor, Powered, Studio, Studio Monitors Brand: Genelec

Description
Tech Specs

All the intelligence of Smart Active Monitoring in an extremely potent nearfield monitor. Introducing the Genelec 8350A.

Make accurate decisions

Boasting high SPL and extended frequency response, the 8350A is crafted to deliver the absolute transparency and neutrality you expect from a Genelec nearfield monitor, and will fit seamlessly into any studio or broadcast environment. With its wide uncoloured sweet spot, it promotes accurate and reliable mix decisions, and its bulletproof durability is essential for mission-critical applications.

System Specifications

Frequency Response

38 Hz – 20 kHz (± 1.5 dB)

Low cutoff -6dB
33 Hz

High cutoff -6dB
22 kHz

SPL

Peak SPL
≥121 dB

Maximum peak acoustic output per pair in a listening room with music material at 1 m.

Short term max SPL
≥112 dB

Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m.

Long term max SPL
≥103 dB

Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver unit protection circuit) at 1 m.

Self-generated noise

Self-generated noise
≤5 dB

Self generated noise level in free field on axis (A-weighted).

Weight

Weight
12.8 kg (28.2 lb)

Dimensions

Height
433 mm (17 1/16 in)

Height with Iso-Pod
452 mm (17 25/32 in)

Width
286 mm (11 1/4 in)

Depth
278 mm (10 15/16 in)

Enclosure

Enclosure material
Die cast aluminium

Enclosure type
Reflex port

Drivers

Bass

Driver type
Cone

Diameter
205 mm (8 1/16 in)

Treble

Driver type
Metal dome

Diameter
25 mm (31/32 in)

Directivity

Vertical directivity

Horizontal directivity

Harmonic distortion

50…100 Hz ≤2 %
> 100 Hz ≤0.5 %

Group delay

The latency at high frequencies from the input to the acoustic output, measured in the analog input:

GLM Linear Phase Range-setting set to NPL (top graph) __3.0 ms__

In Genelec performance graphics, the time of converting the from an electronic input signal to the acoustic output in a Genelec monitor is described by two factors – latency and group delay. The group delay factor can be read in the graphics for a specific frequency. The total frequency-specific input-to-output delay is a sum of the latency and group delay factors. To understand the significance of this total delay, consider that moving a loudspeaker away by 1 meter creates an additional delay of about 3 ms.

Amplifier Section

Amplifiers

8350A bass amplifier

200 W Class D

8350A treble amplifier

150 W Class D

Mains voltage

100-240 VAC 50/60Hz

Power consumption

ISS Active
≤1 W

Idle
≤12 W

Full output
230 W

Signal processing section

Connectors

Input

Analog signal input connector XLR female, balanced 10 kOhm.
